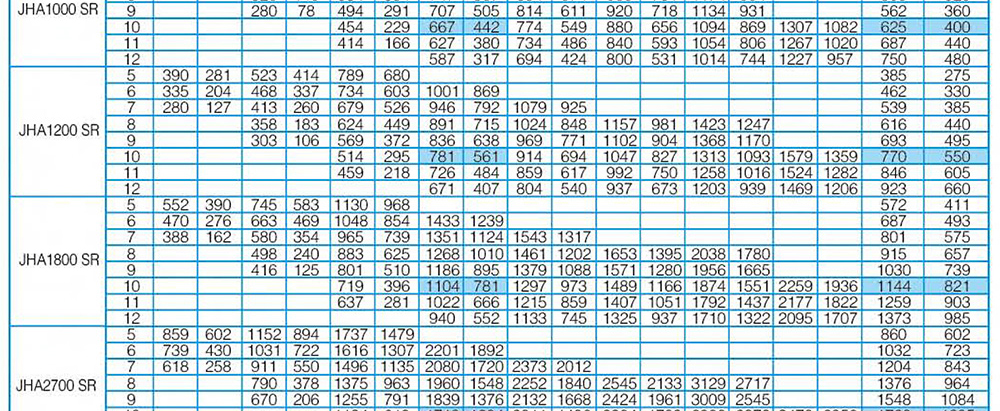

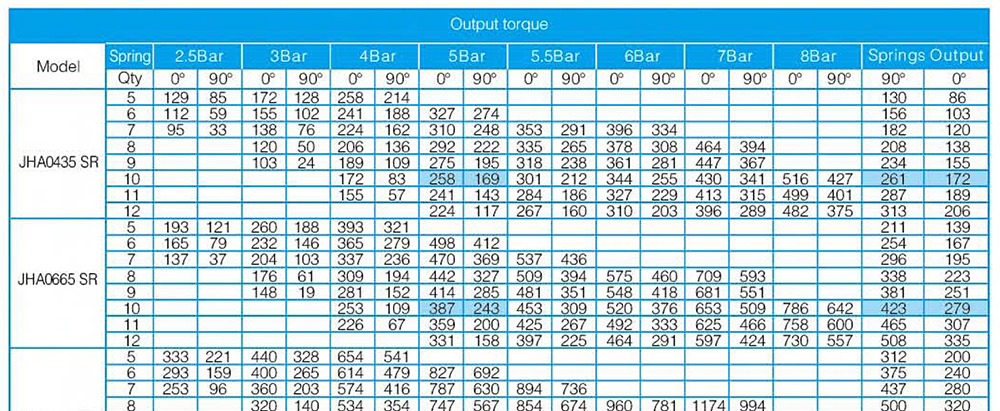

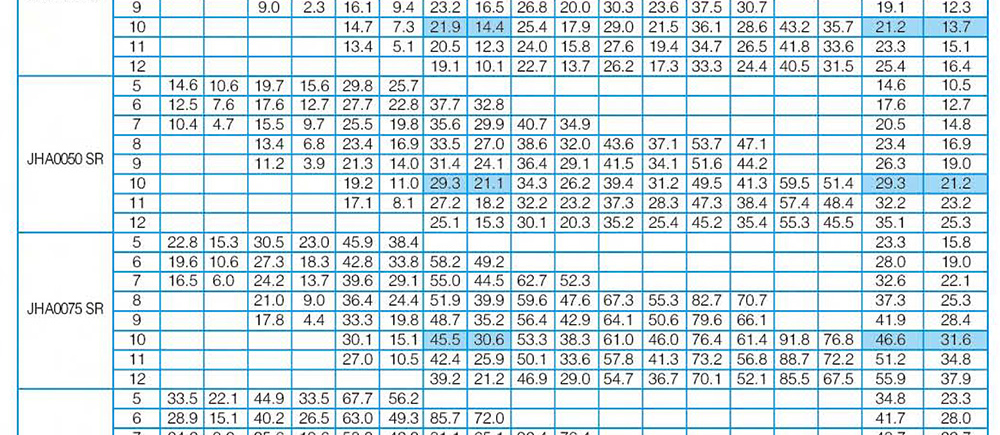

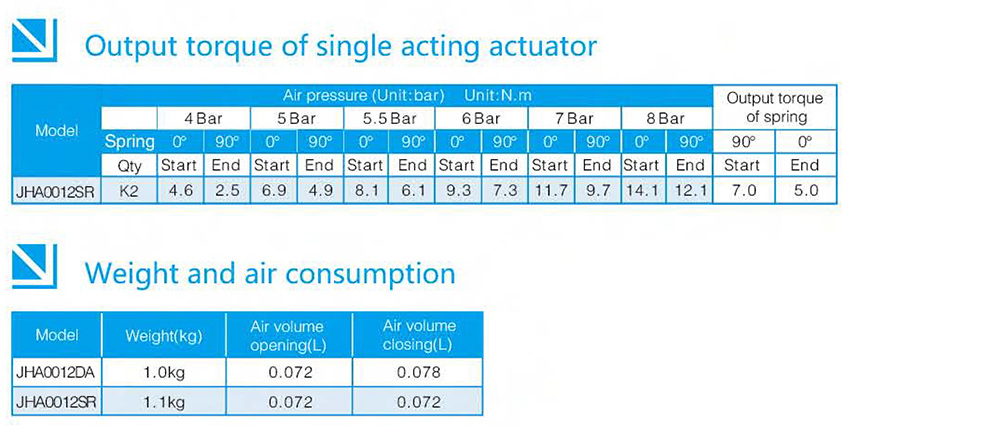

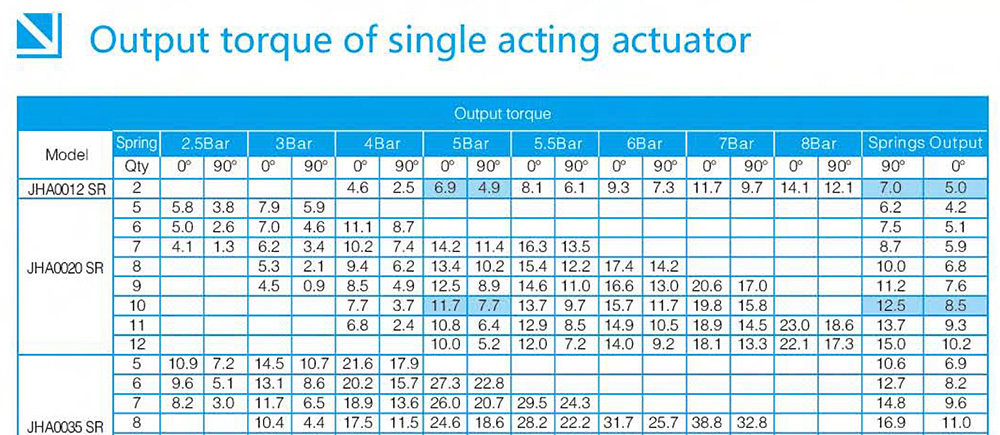

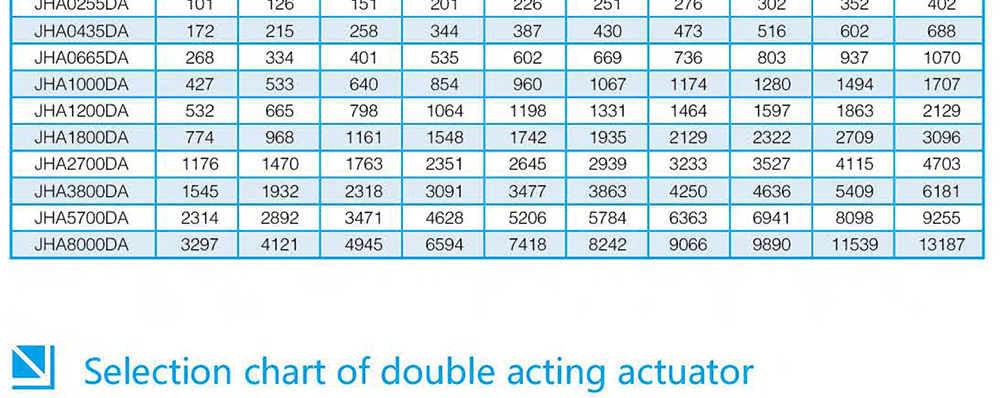

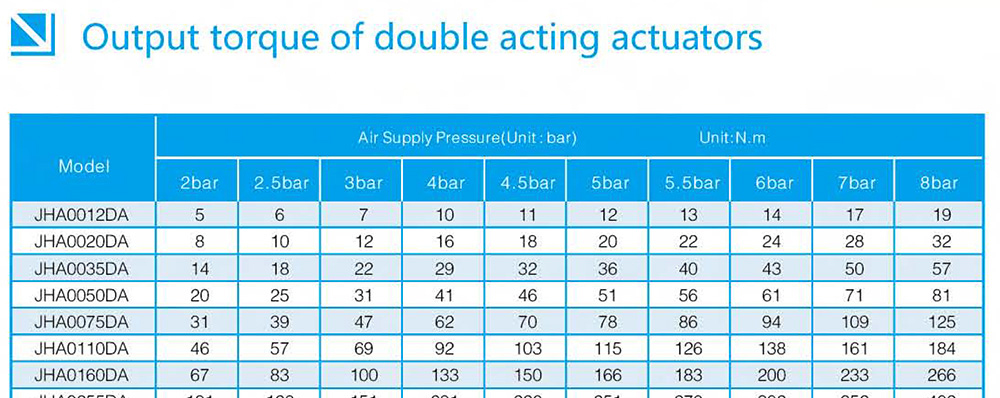

Torque：8Nm-4500Nm

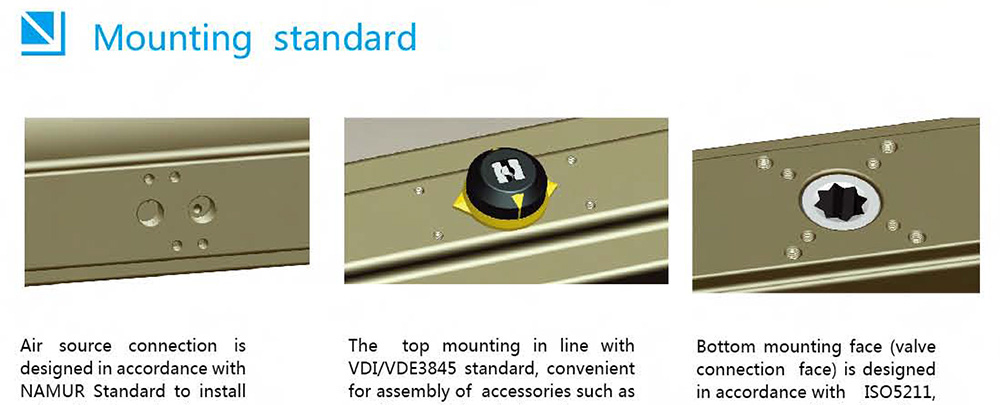

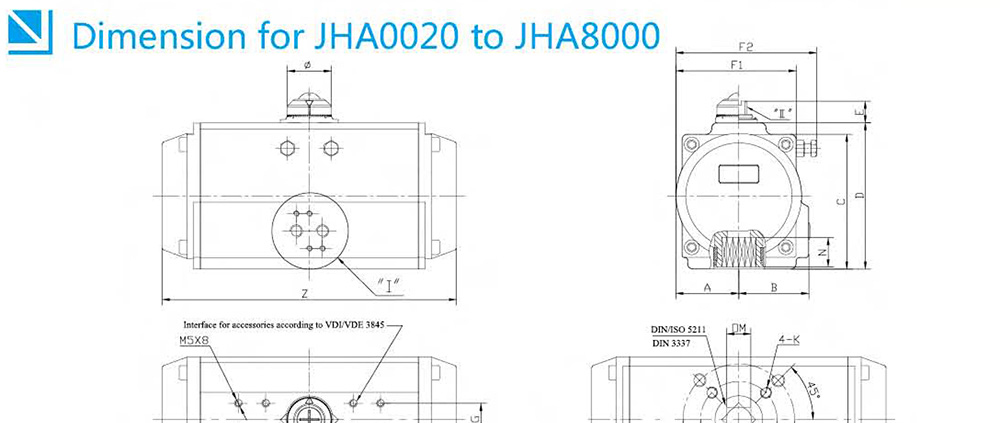

Mounting flange：DIN/ISO5211 DIN3337

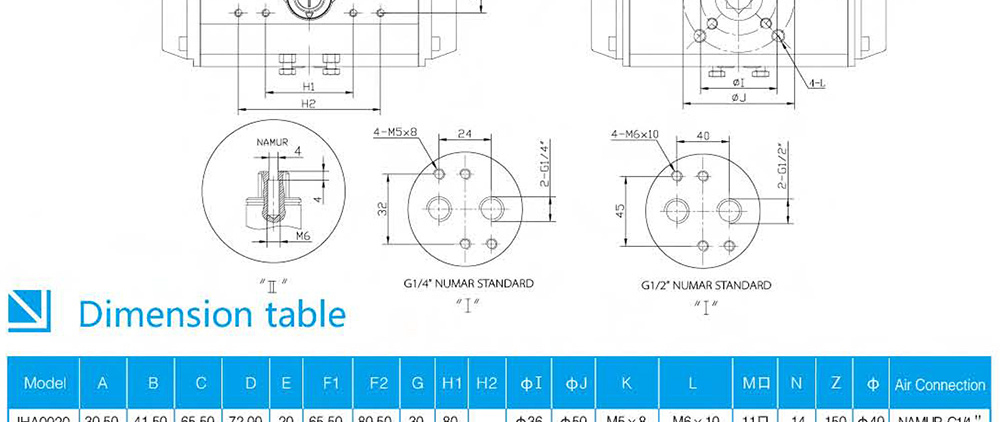

Control valve connection：NAMUR Standard

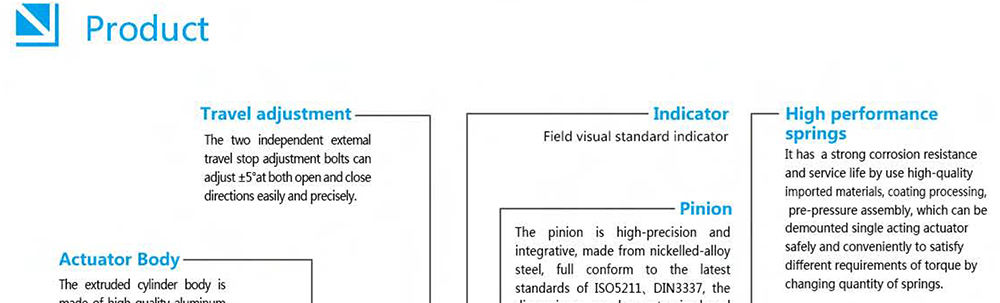

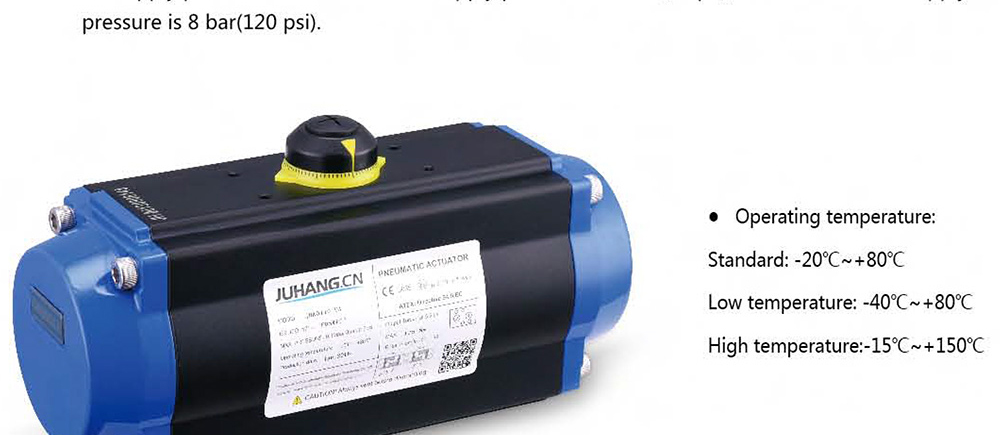

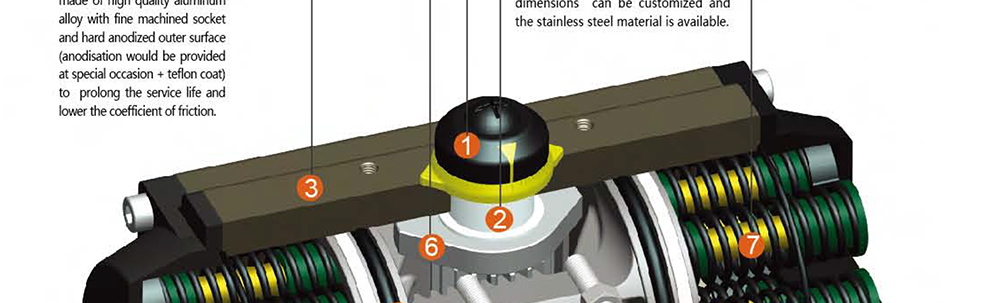

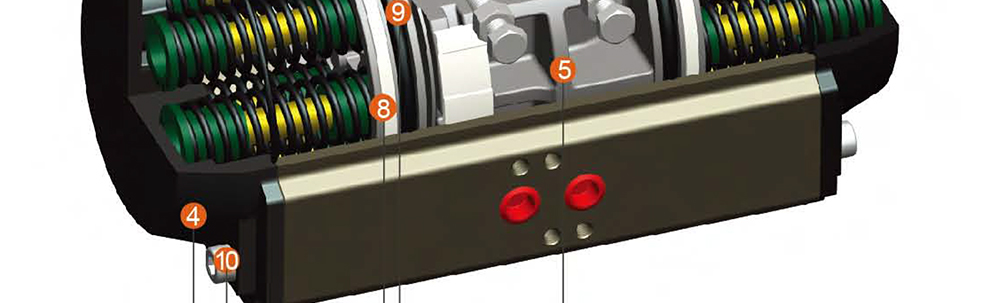

Structure：compact rack and pinion pneumatic actuators
Angle：90°(+/-5°)

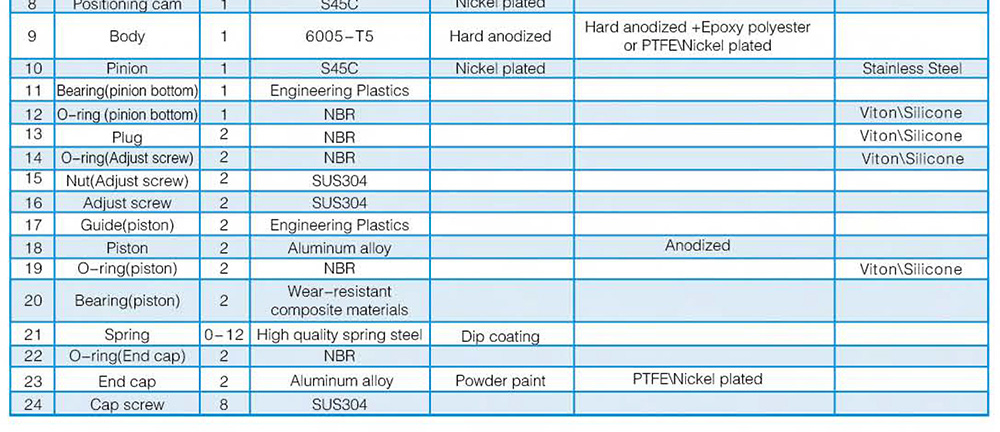

Material：aluminum alloy, the product surface hard anodized (hard anodized+ Teflon coat)
Features：low friction, long life, open and close time can reach more than one million times.
Application range：for angle travel valves, ball valves, butterfly valves, plug valves and so on
